SPS-66 Smart Condensate Pump for Wall Mount Mini Split Systems, 10.6 Gal/H, 3.3ft Lift, 110v-240v
Product Code: A5: SPS-66
Rating: Be the first to write a review
Brand: Smart Pump
Product Condition: New

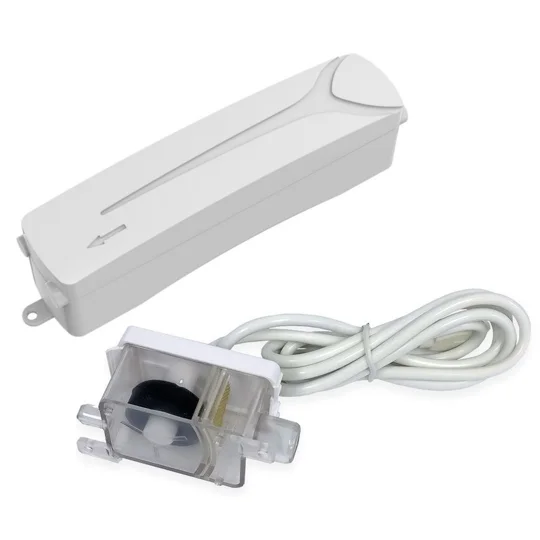

SPS-66 Condensate Pump for Ductless Systems
SPS-66 SMART PUMP condensate pump is designed as an automatic condensate removal pump for water dripping off an air conditioner evaporative coil. The pump is controlled by a float/switch mechanism which turns the pump on when approximately 2" of water collects in the tank, and automatically switches off when the tank drains to approximately 1".
°Compare to more expensive brands like:
⇒Refco's Combi & Aspens ASP-MA-UNI
⇓Scroll Down to related items for other options⇓
Features
Thermally Protected
Overflow Alarm Function
Suitable water Temp 32°F - 167◦F
Automatic Tank Cleaning
Error Alarm
Anti-Mold Tank
TECHNICAL DATA
• Pump rating: 110-240VAC 50/60Hz Single Phase
• Max. water flow rate : 40L / 10.6 US Gal / H
• Max rec. head: 20m / 66ft
• Max.suction lift: 1m / 3.3ft
• Sound level: 19dB(A)@ 1m
• Rated: Non-continuous
• Class: II appliance
• Safety switch: 3A normally closed
• Max.water temperature :70℃ / 158°F
• Inlet size: Ø 7.5mm
• Outlet size: Ø 7.5mm
•IP Protection: IPx1
•Thermal Protection: √
•Fully Potted: √
•Self Priming: √
READ INSTRUCTIONS CAREFULLY BEFORE ATTEMPTING TO INSTALL, OPERATE OR SERVICE THE SMART PUMP. KNOW THE PUMP APPLICATION, LIMITATIONS AND POTENTIAL HAZARDS. PROTECT YOURSELF AND OTHERS BY OBSERVING ALL SAFETY INFORMATION.
WIRING
INSTRUCTIONS
SPS-66 SMART PUMP condensate pump is designed as an automatic condensate removal pump for water dripping off an air conditioner evaporative coil. The pump is controlled by a float/switch mechanism which turns the pump on when approximately 2" of water collects in the tank, and automatically switches off when the tank drains to approximately 1".
°Compare to more expensive brands like:
⇒Refco's Combi & Aspens ASP-MA-UNI
⇓Scroll Down to related items for other options⇓
Features
Thermally Protected
Overflow Alarm Function
Suitable water Temp 32°F - 167◦F
Automatic Tank Cleaning
Error Alarm
Anti-Mold Tank
TECHNICAL DATA
• Pump rating: 110-240VAC 50/60Hz Single Phase
• Max. water flow rate : 40L / 10.6 US Gal / H
• Max rec. head: 20m / 66ft
• Max.suction lift: 1m / 3.3ft
• Sound level: 19dB(A)@ 1m
• Rated: Non-continuous
• Class: II appliance
• Safety switch: 3A normally closed
• Max.water temperature :70℃ / 158°F
• Inlet size: Ø 7.5mm
• Outlet size: Ø 7.5mm
•IP Protection: IPx1
•Thermal Protection: √
•Fully Potted: √
•Self Priming: √
READ INSTRUCTIONS CAREFULLY BEFORE ATTEMPTING TO INSTALL, OPERATE OR SERVICE THE SMART PUMP. KNOW THE PUMP APPLICATION, LIMITATIONS AND POTENTIAL HAZARDS. PROTECT YOURSELF AND OTHERS BY OBSERVING ALL SAFETY INFORMATION.
WIRING
INSTRUCTIONS
