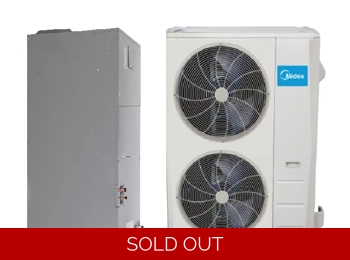

Midea 60000 Btu Central-Duct Mini Split AC with Hyper Heat Pump -22°F - 16 SEER2, 9.6 EER, 8.5 HSPF

Product Code: A7: DLCLRCH58AAK/DLFLABH60XAK
Rating: Be the first to write a review
Brand: Carrier Midea North America
Product Condition: New

Midea Central Ducted Hyper Heat Pump AC

*Included in Package:
*(1) One Indoor Air Handler with Wireless Remote
*(1) One Hyper Heat Pump Outdoor Unit (-22F/-22F)

  • Modes: Cool, Heat, Dry, Fan, Auto
  • Multi Poise Installation (Up Flow, Down Flow, Horizontal Right, Horizontal Left)
  • Total system static pressure up to 0.8 in. W.C
  • Less than 2% air leakage
  • Quiet indoor operation
  • Anti-corrosive fin coating
  • Extreme heating operation in as low as -22° F (-30° C)
  • Optional Electric Heat Packages available
  • Built-in third-party thermostat compatibility (Single Stage)
  • Available in 208/230V
  • Built-in basepan heater
  • Factory installed crankcase heater.
  • Auto-restart function
  • Condenser high-temperature protection
  • Refrigerant leakage detection
  • Quiet outdoor operation,
  • Aluminum Golden Hydrophilic pre-coated fins
  • Piping length 213'
  • Cooling operating range
    • -22~130 F
  • Heating operating range
    • -22~86  F



 Cut Sheet
Brochure
NEEP Report

  • Installation Flexibility
    A built-in secondary drain allows the unit to be mounted vertically (up flow or down flow) or horizontally (left or right), enabling multi-position installation. All three sizes are capable of operating as traditional central ducted systems when paired with a compatible single zone outdoor unit.
  • Efficient Comfort
    As an alternate to gas furnaces, reduce the use of fossil fuels and experience cleaner energy and efficiency levels that meet many local and federal requirements.
  • CONTROLS: Factory installed 24V interface for third-party thermostat compatibility
  • Extra Low Temperature Heating
    For when its cold outside, the heat output for this system is up to 69% of rated capacity down to -22° F (-30° C), making this a primary heat source and eliminating the need for a backup heat source.
  • Stepless Frequency Adjustment
    Precise control of the system maintains stable and constant room temperature while reducing sound level and saving energy.

(1) Factory Warranty

Register Online: CLICK HERE
(*Terms apply)

*IMPORTANT INFO*
  • (3rd Party Thermostat Requirements: 5 Wire Thermostat with at least R,C,G, Y and B Connections)Image preview
  • ACCESSORIES: Electric Heat Packages EHKMB05KN, EHKMB08KN, EHKMB10KN, EHKMB15KN, EHKMB20KN, EHKMB25KN (*Optional, Requires Separate 208-230V Power)


INDOOR CUT SHEET
PRODUCT DATA
Brochure








OUTDOOR CUT SHEET
PRODUCT DATA
Installation Instructions

Bulk Buying Options
  • single - $5,049.99 ex. tax -
  • 2 up to 4 - $4,999.99 ex. tax - per item
$5,049.99 inc. tax
$5,049.99 ex. tax
? Tax based on United States.
