6000 BTU Mini Split AC with Hyper -22°F Heat Pump & Cassette Option, 26.5 SEER, 15.8 EER, 13.6 HSPF

Product Code: A: DLCSRBH06AAK
Rating: Be the first to write a review
Brand: Carrier Midea North America
Product Condition: New
Units in Stock: 9

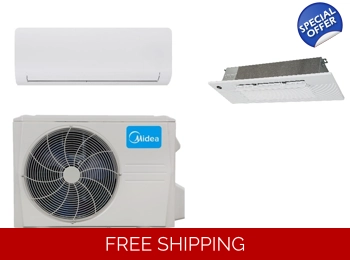

Midea 6000 Btu Mini Split HYPER Heat Pump AC

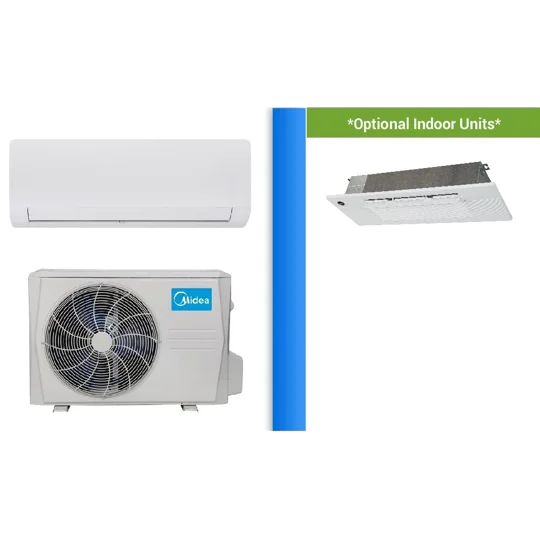

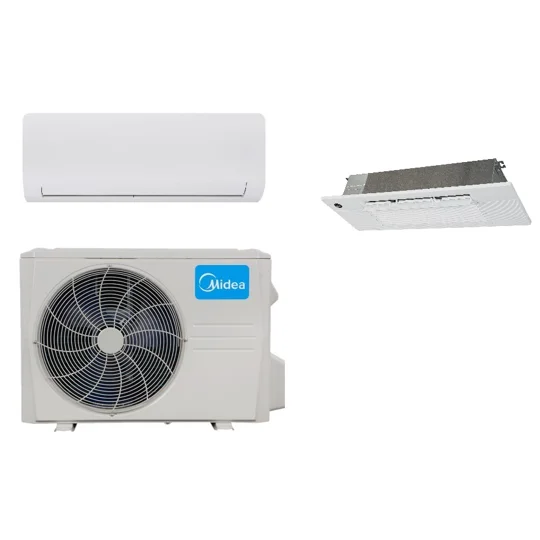

This Midea 6000 Btu Mini Split Package Includes :

*(1) Wall Mount Indoor Unit : (DLFSH) with remote
*(1) HYPER -22°F 6000 Btu Outdoor Unit: (DLCSR)
*6000 btu Indoor unit can be upgraded to different types via the dropdown boxes above.

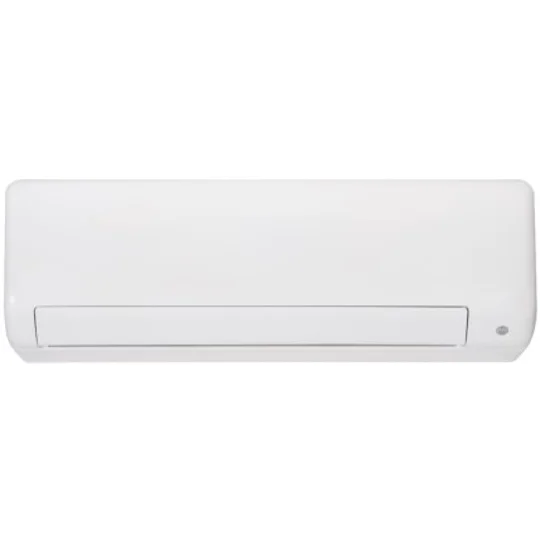

DLFSH Features Include:
STANDARD FEATURES: • Modes: Cool, Heat, Dry, Fan, Auto • Turbo Mode • Four fan speeds • Sleep Mode • ECO Mode • Up-Down Louver control (fixed or swing) • Follow Me (senses temperature at handheld remote) • Heating Setback (46° F Heating Mode) • Quiet indoor operation • Aluminum Golden Hydrophilic pre-coated fins

Outdoor Cut Sheet/Specification

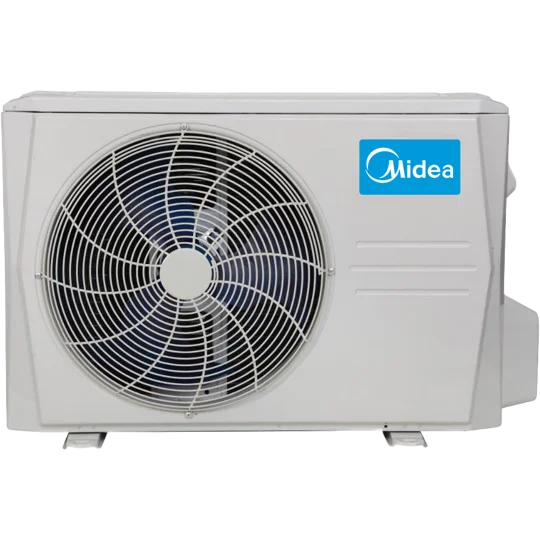

DLCSR Features Include:
˜Heats & Cools (-22F/-22F)˜
STANDARD FEATURES: • Variable Speed (Inverter) • Factory installed Base Pan Heater • Factory installed Crankcase Heater • Low Voltage Controls • Auto-Restart function • Condenser High Temp Protection • Modes: Cool, Heat, Dry, Fan, Auto • Quiet operation • Anti-corrosive Gold fin coating • Refrigerant leak detection

  • Extra Low Temperature Heating
    For when its cold outside, the heat output for this system is up to 69% of rated capacity down to -22° F (-30° C), making this a primary heat source and eliminating the need for a backup heat source.
  • Stepless Frequency Adjustment
    Precise control of the system maintains stable and constant room temperature while reducing sound level and saving energy.
  • 100% heating capacity at 5° F
  • Cooling operating range
    • -22° ~ 130° F
  • Heating operating range
    • -22° ~ 86° F (-30° ~ 30°C)

(1) Factory Warranty

Register Online: CLICK HERE
(*Terms apply)


STANDARD FEATURES: • Modes: Cool, Heat, Dry, Fan, Auto • Turbo Mode • Four fan speeds • Sleep Mode • ECO Mode • Up-Down Louver control (fixed or swing) • Follow Me (senses temperature at handheld remote) • Heating Setback (46° F Heating Mode) • Quiet indoor operation • Aluminum Golden Hydrophilic pre-coated fins



DLFSH Cut Sheet  Product Data  AHRI Certificate  Brochure

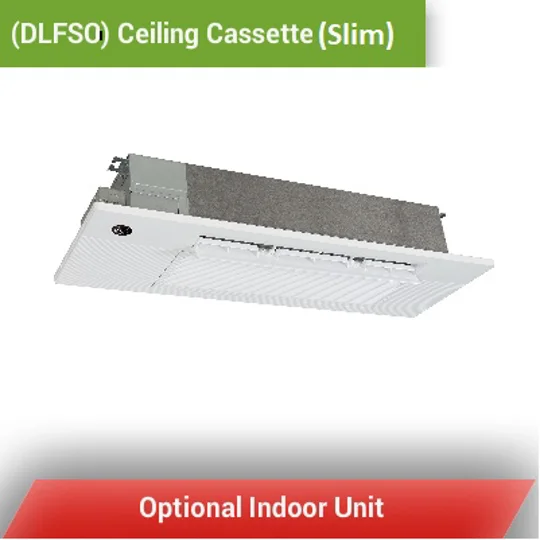

Optional: Slim Ceiling Cassette
STANDARD FEATURES: • Designed to be mounted between 16" joists • Modes: Cool, Heat, Dry, Fan, Auto • 4 fan speeds • Sleep Mode • Turbo Mode • Louver control (fixed or swing) • Follow Me (senses temperature at handheld remote) • Heating Setback (46° F Heating Mode) • Quiet indoor operation • Aluminum Golden Hydrophilic pre-coated fins • Condensate Pump • Dual Capacity: 6/9K & 12/18K



DLFSO Cut Sheet  Install Manual  Owners Manual AHRI
⇓ See Related Items Below For More Accessories ⇓

  • Extra Low Temperature Heating
    For when its cold outside, the heat output for this system is up to 69% of rated capacity down to -22° F (-30° C), making this a primary heat source and eliminating the need for a backup heat source.
  • Stepless Frequency Adjustment
    Precise control of the system maintains stable and constant room temperature while reducing sound level and saving energy.

FEATURES

  • 100% heating capacity at 5° F (-15° C)
  • Available in 208/230V
  • Built-in basepan & crankcase heater
  • Auto-restart function
  • Condenser high-temperature protection
  • Refrigerant leakage detection
  • Quiet outdoor operation, as low as 54.5 dB(A)
  • Aluminum Golden Hydrophilic pre-coated fins
  • Piping length 82' (32' Lift)
  • Cooling operating range
    • -22~130 (-30~55)
  • Heating operating range
    • -22° ~ 86° F (-30° ~ 30°C)


Compatible With:

  • DLFSH High Wall
  • DLFSO Slim Cassette
SUBMITTAL DATA SHEET
Outdoor Product Data
Indoor Product Data
