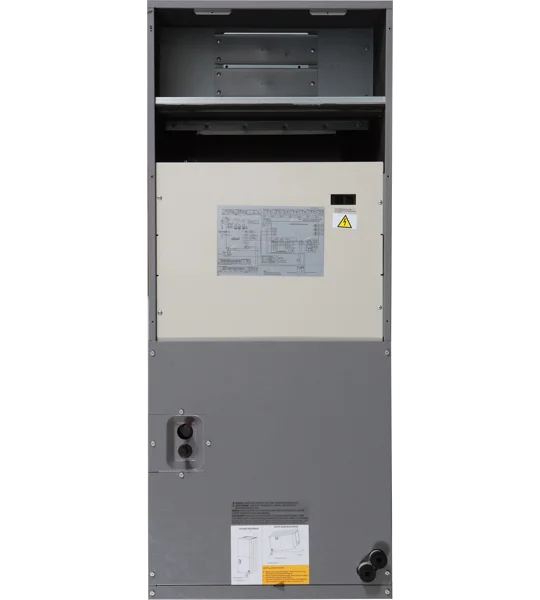

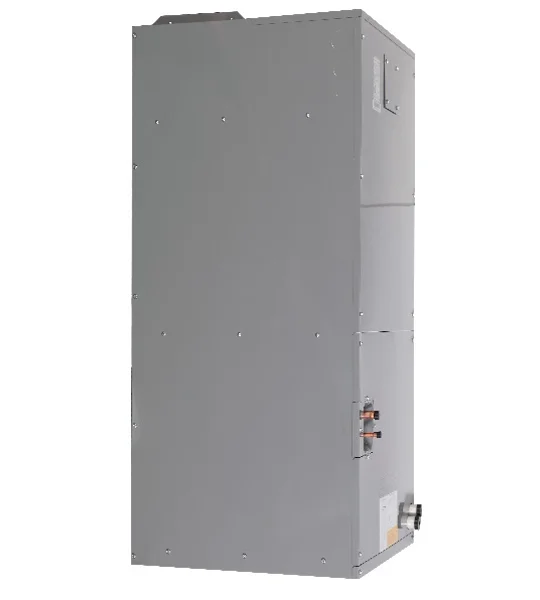

36000 Btu DLFSA Central Ducted Indoor Unit

KEY FEATURES

• Installation Flexibility
  A built-in secondary drain allows the unit to be mounted vertically (up flow or down flow) or horizontally (left or right), enabling multi-position installation. All three sizes are capable of operating as traditional central ducted systems when paired with a compatible single zone outdoor unit.
• Multi-Zone Compatibility
  The Air Handler can connect to select properly sized multizone outdoor units to create one integrated system, enabling unique zoned comfort and efficiency. (Up to 2 AHUs can be used for the following combinations only: 18+18, 18+24, 18+30, 18+36, 24+24, 24+30, 24+36. In the case that 2 AHU units are selected, no other units may be connected to the outdoor unit, regardless of remaining ports or capacity availability)
• Efficient Comfort
  As an alternate to gas furnaces, reduce the use of fossil fuels and experience cleaner energy and efficiency levels that meet many local and federal requirements.
• CONTROLS: Factory installed 24V interface for third-party thermostat compatibility* (*Wireless Remote included, **Wired thermostat not included) (3rd Party Thermostat Requirements: 5 Wire Thermostat with at least R,C,G, Y and B Connections)
•
• ACCESSORIES: Electric Heat Packages EHKMB05KN, EHKMB08KN, EHKMB10KN, EHKMB15KN, EHKMB20KN, EHKMB25KN (*Optional, Requires Separate 208-230V Power)

  FEATURES
• Modes: Cool, Heat, Dry, Fan, Auto
• Multi Poise Installation (Up Flow, Down Flow, Horizontal Right, Horizontal Left)
• Total system static pressure up to 0.8 in. W.C
• Less than 2% air leakage
• Quiet indoor operation
• Anti-corrosive fin coating
• Extreme heating operation in as low as -22° F (-30° C) based on outdoor unit pairing
• Optional Electric Heat Packages available
• Built-in third-party thermostat compatibility (Single Stage): Not Included.

Compatible With:

• DLCMRB Outdoor Unit Multi-Zone
