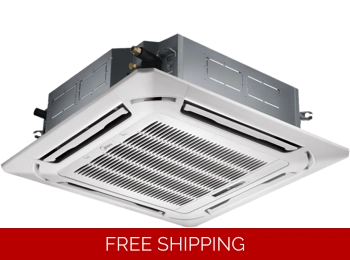

36000 btu DLFLC Ceiling Cassette Indoor Unit
Product Code: DLFLCAH36XAK+KSALG0201AAA
Rating: Be the first to write a review
Brand: Carrier Midea North America
Product Condition: New
(Notify me when product is back in stock)
KEY FEATURES
- Built-in Condensate Lift pump
The cassette is supplied with a condensate lift pump that is capable of lifting the water 29.5 in. (750 mm.) above the top of the unit. - 360° Air Flow Panel
With the 360° air flow panel, air is distributed to every corner of the room.
FEATURES
- Available in 208/230V
- Up to 17.5 SEER and 11.0 HSPF when paired with DLCLR outdoor unit
- Modes: Cool, Heat, Dry, Fan, Auto
- Auto-restart function
- Louver control (fixed or swing)
- Three fan speeds
- Outside air intake
- Built-in condensate lift pump
- Follow Me (senses temperature at handheld remote)
- Heating Setback (46° F Heating Mode)
- Quiet indoor operation, as low as 49 dB(A)
- Aluminum Golden Hydrophilic pre-coated fins
- Grille/ceiling panel 3 x 3 sizes 24 to 48 KSALG0201AAA
Compatible With:
- DLCLR Outdoor Unit Single Zone
Color: White
| DLFLCA Cassette | ||
| Heat Pump | ||
| System | ||
| Size | 36 | |
| Indoor Model | DLFLCAH36XAK | |
| Electrical | ||
| Voltage-Phase-Cycle | V-Ph-Hz | 208/230-1-60 |
| Power Supply | Indoor unit powered from outdoor unit | |
| MCA | A. | 0.8 |
| Operating Range | ||
| Cooling Indoor DB Min - Max | ° F (° C) | 63~90 (17~32) |
| Heating Indoor DB Min - Max | ° F (° C) | 32~86 (0~30) |
| Piping | ||
| Pipe Connection Size - Liquid | in (mm) | 3/8 (9.52) |
| Pipe Connection Size - Suction | in (mm) | 5/8 (16) |
| Indoor | ||
| Body Unit Width | in (mm) | 33.07 (840) |
| Body Unit Height | in (mm) | 9.65 (245) |
| Body Unit Depth | in (mm) | 33.07 (840) |
| Body Net Weight | lbs (kg) | 58.2 (26.4) |
| Grille Unit Width | in (mm) | 37.4 (950) |
| Grille Unit Height | in (mm) | 2.17 (55) |
| Grille Unit Depth | in (mm) | 37.4 (950) |
| Grille Net Weight | lbs (kg) | 11.02 (5) |
| Number of Fan Speeds | 3 | |
| Airflow (lowest to highest) | CFM | 809/958/1095 |
| Sound Pressure (lowest to highest) | dB(A) | 49/52/55 |
| Air Throw Data | ft (m) | 30 (9) |
| Moisture Removal | Pint/h (L/h) | 8.53 (4.04) |
| Field Drain Pipe Size O.D. | in (mm) | 1 (25.4) |
