Midea 17.5 SEER2 30,000 Btu Ducted Mini Split 2.5 Ton Heating and Cooling (-22°F) 11.2 EER/8.4 HSPF

Product Code: A5: DLCSRBH30AAK/DLFSABH30XBK
Rating: Be the first to write a review
Brand: Carrier Midea North America
Product Condition: New
Units in Stock: 5

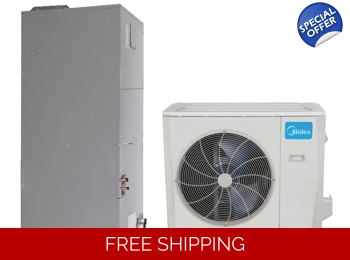

Midea Central Ducted Hyper Heat Pump AC

*Included in Package:
*(1) One Indoor Air Handler with Wireless Remote
*(1) One Hyper Heat Pump Outdoor Unit (-22F/-22F)

  • Modes: Cool, Heat, Dry, Fan, Auto
  • Multi Poise Installation (Up Flow, Down Flow, Horizontal Right, Horizontal Left)
  • Total system static pressure up to 0.8 in. W.C
  • Less than 2% air leakage
  • Quiet indoor operation
  • Anti-corrosive fin coating
  • Extreme heating operation in as low as -22° F (-30° C)
  • Optional Electric Heat Packages available
  • Built-in third-party thermostat compatibility (Single Stage)
  • Available in 208/230V
  • Built-in basepan heater
  • Factory installed crankcase heater.
  • Auto-restart function
  • Condenser high-temperature protection
  • Refrigerant leakage detection
  • Quiet outdoor operation,
  • Aluminum Golden Hydrophilic pre-coated fins
  • Cooling operating range
    • -22~130 (-30~55)
  • Heating operating range
    • -22~86 (-30~30)



 Cut Sheet
AHRI
Brochure
NEEP Report

  • Installation Flexibility
    A built-in secondary drain allows the unit to be mounted vertically (up flow or down flow) or horizontally (left or right), enabling multi-position installation. All three sizes are capable of operating as traditional central ducted systems when paired with a compatible single zone outdoor unit.
  • Efficient Comfort
    As an alternate to gas furnaces, reduce the use of fossil fuels and experience cleaner energy and efficiency levels that meet many local and federal requirements.
  • CONTROLS: Factory installed 24V interface for third-party thermostat compatibility
  • Extra Low Temperature Heating
    For when its cold outside, the heat output for this system is up to 69% of rated capacity down to -22° F (-30° C), making this a primary heat source and eliminating the need for a backup heat source.
  • Stepless Frequency Adjustment
    Precise control of the system maintains stable and constant room temperature while reducing sound level and saving energy.

(1) Factory Warranty

Register Online: CLICK HERE
(*Terms apply)

*IMPORTANT INFO*
  • (3rd Party Thermostat Requirements: 5 Wire Thermostat with at least R,C,G, Y and B Connections)Image preview
  • ACCESSORIES: Electric Heat Packages EHKMB05KN, EHKMB08KN, EHKMB10KN, EHKMB15KN, EHKMB20KN, EHKMB25KN (*Optional, Requires Separate 208-230V Power)

⇓ SEE RELATED ITEMS BELOW FOR MORE ACCESSORIES ⇓


INDOOR CUT SHEET
PRODUCT DATA
Brochure








OUTDOOR CUT SHEET
PRODUCT DATA
Installation Instructions






Bulk Buying Options
  • single - $3,049.99 ex. tax -
  • 2 up to 4 - $2,999.99 ex. tax - per item
$3,049.99 inc. tax
$3,049.99 ex. tax
? Tax based on United States.
Customer Reviews
(write review)
Sales and technical staff are fantastic. Thank you 5 product stars
"I found your products and your service to be perfect." Nelson E. Ward - Tuesday, February 25, 2025
quality central ducted split 5 product stars
"This was very easy to replace our Goodman with this unit for a very good total cost of replacement - thanks. The quality of this central ducted split is evident once you get it up and running" Robbie Johnson - Saturday, February 1, 2025
BEST INVESTMENT 5 product stars
"Love Super quiet and comfort. It keep my 1400sq ft studio at steady temperature , Love it." James Demello - Monday, January 13, 2025
Impressive system 5 product stars
"The central ducted heat pump works perfectly and has been maintaining comfort in my home even on the hottest days. The shipping was fast. Installation uncomplicated." Sammie - Wednesday, November 6, 2024
Good product. 4 product stars
"We had to get a new system after ours broke." Jose Lee Farnsworth - Tuesday, July 6, 2021
Looks great 4 product stars
"Installation is easy but the directions are a bit hard to interpret." Rolando Palma - Thursday, February 4, 2021
You can control all aspects of the unit. 4 product stars
"The compressor and fan both seem to be able to run at different speeds, which lets it run much quieter if it doesn't need to be on full blast." Maurice K. Gilbert - Monday, January 18, 2021
