C&H Custom Multi-Zone (2-5) Mini Split System + Heating & Cooling -13°F, 13.9 EER, 10.5 HSPF, E-Star

Product Code: A95: C&H Custom Build
Rating: Be the first to write a review
Brand: Cooper and Hunter
Product Condition: New
New C&H MULTI ZONE Mini Split HYPER Heat Pump AC

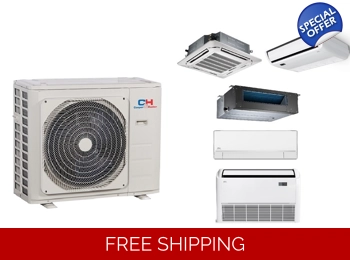

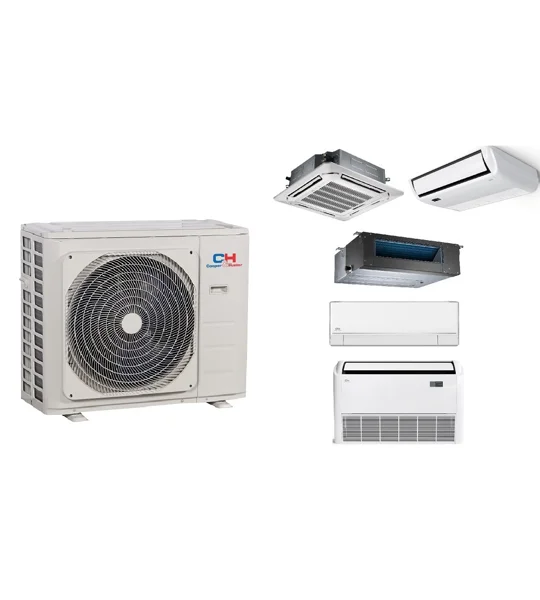

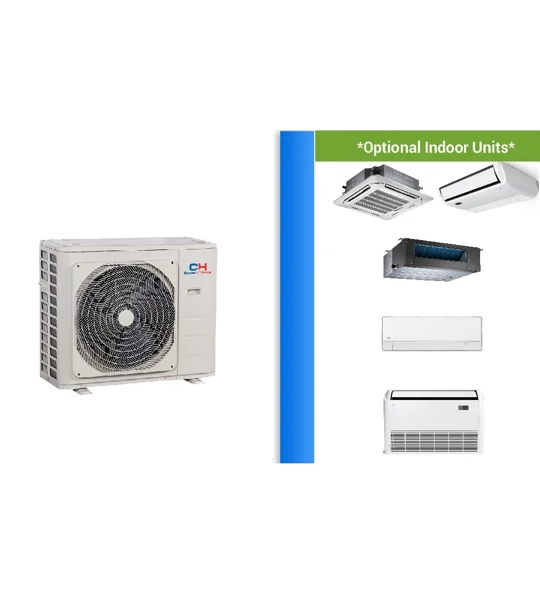

*This Custom C&H Multi Zone Mini Split Package Includes:

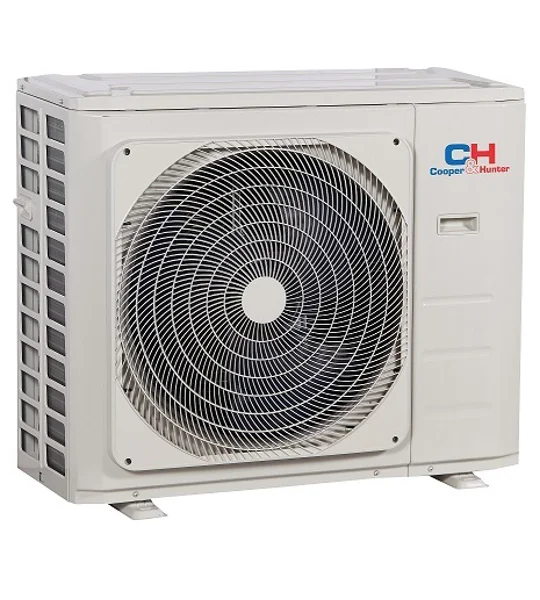

*(1) Hyper Multi Zone Outdoor Unit
*Custom means the outdoor can be upgraded and indoor units added
via the dropdown boxes above.

Features :
˜Heats & Cools (-13F/-13F) ˜Basepan Heater (Built in)˜
˜Gold Coated Coils˜ ˜Refrigerant Leak Detection
˜Auto Restart˜

Brochure
HIGH-FREQUENCY RACER TECHNOLOGY:
Enables the compressor  to reach maximum speed within 6 seconds on start up
HIGH-EFFICIENCY PIPES:
54 teeth to increase heat exchange
INTELLIGENT DUSTING SWITCH:
Reverses the fan to clean dust and other debris from the coil

C&H Multi Zone systems, with inverter technology, are some of today’s most advanced ductless split heat pumps. Up to 5 indoor units can be connected to a single outdoor unit, reducing the number of outdoor units required. All indoor units can be individually controlled and do not need to be installed at the same time.

With modern heat pump technology, the Optional Hyper Heat series offers dependable cooling as well as the capability to heat in ambient temperatures as low as -22°F, making it an excellent, energy-efficient solution for colder climates.


7yr Compressor 5yr Parts Warranty

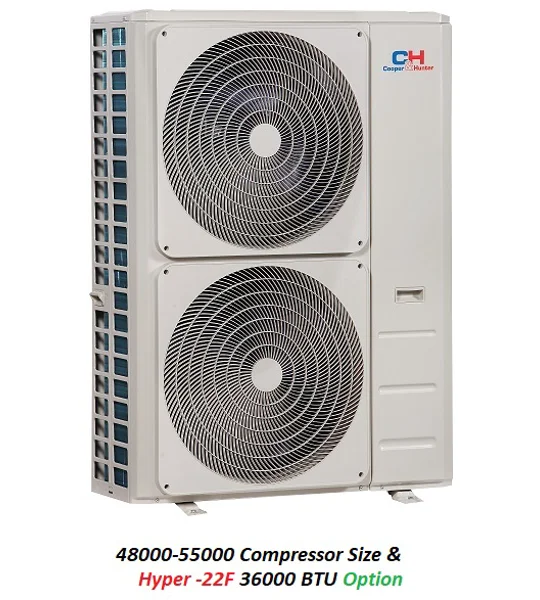

*Upgrade the -13F outdoor unit to larger sizes
and the -22F Hyper model via the dropdown boxes
(Click) model numbers for cut sheets
CH-18MES-230VO CH-28MES-230VO CH-36MES-230VO CH-48MES-230VO CH-55MES-230VO
CH-HPR19M-230VO CH-HPR28M-230VO CH-HPR36M-230VO CH-HPR48M-230VO CH-HPR55M-230VO

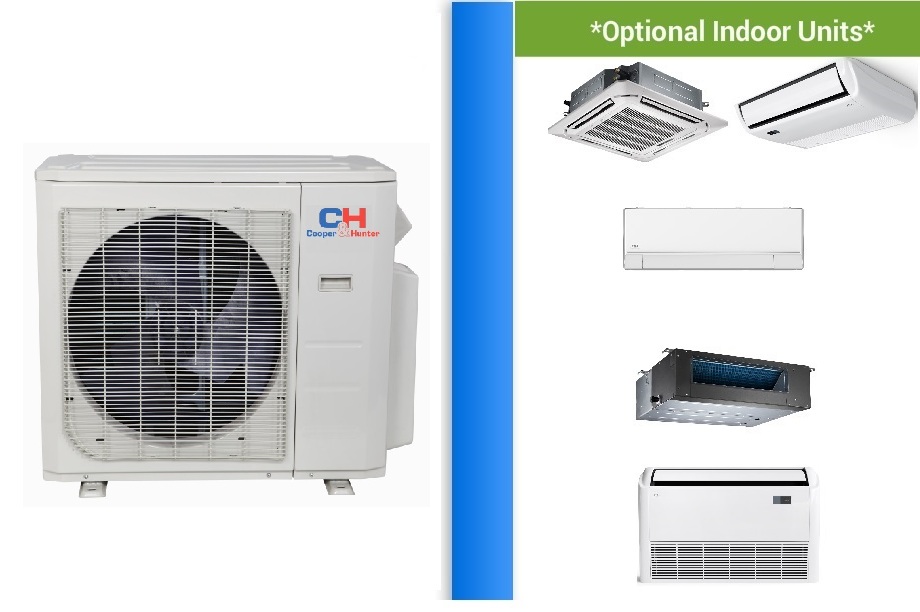

*ADD the indoor units below via the dropdown boxes above

When adding your indoor units, please do not exceed the outdoor BTU capacity.
Indoor Combined BTU ≤ OUTDOOR MAX BTU
(Click Here for Allowed Indoor Combinations)









• Auto-Swing for horizontal louvers • Genius Core ultra-low compressor speed of 12Hz • New User-Friendly Remote Controller design  • 46° Freeze Protection  • WiFi Ready  • Turbo Mode  • Self-Clean Function (single zone only) • Eco Mode (single zone only)  • Follow Me Mode  • Timer On/Off  • Sleep Mode

SPECIFICATIONS (CLICK)      Brochure (White)   Brochure (Black)



• E-Box and PCB located in the front of the unit with a cover kickstand providing easy access • Revolutionary design offers convenient disassembly & maintenance with an easy-to-remove fan blower • Larger air inlet / outlet for improved air flow • Auto-Swing for vertical and horizontal louvers • New User-Friendly Remote Controller design • Self-Clean Function (single zone only) • Follow Me Mode • Timer On/Off • Eco Mode (single zone only) • 46° Freeze Protection • Turbo Mode • Sleep Mode

SPECIFICATIONS (CLICK)

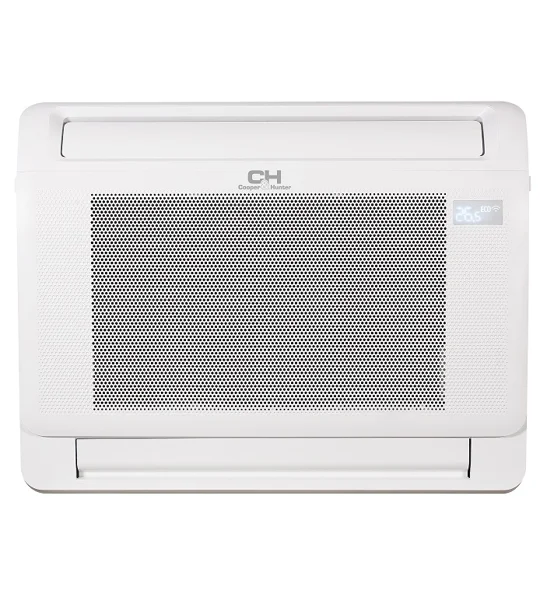

Floor Console: Mini Floor Consoles are most popular in colder climates as, during winter seasons, dual air discharge locations provide heated air at ground level, which naturally rises to fill the room. They are also a great option for attics, which often do not have the wall or ceiling space for other indoor types. Mini Floor Consoles are available in 12/16K Btu/h only.

SPECIFICATIONS (CLICK)

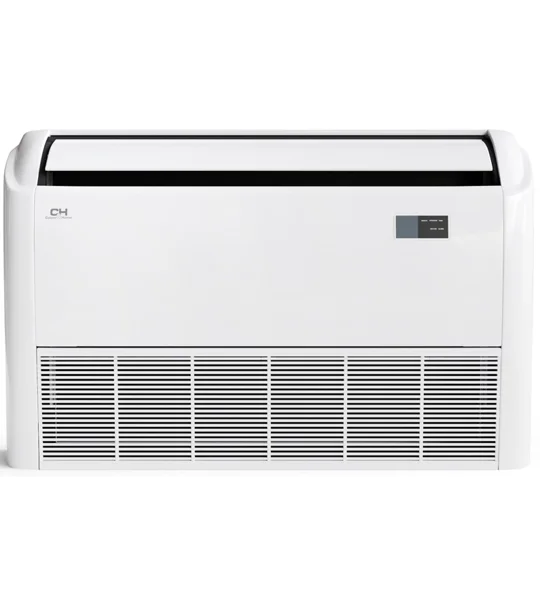

Floor or Ceiling Mount (Universal) : Universal Floor/Ceiling units offer flexibility in regard to location, as they can be installed horizontally on a ceiling or vertically on a wall. These units can be conveniently controlled by remote control, wall thermostat, or C&H Remote app. Universal Floor/Ceiling units are available in 18K and 24K models.

SPECIFICATIONS (CLICK)

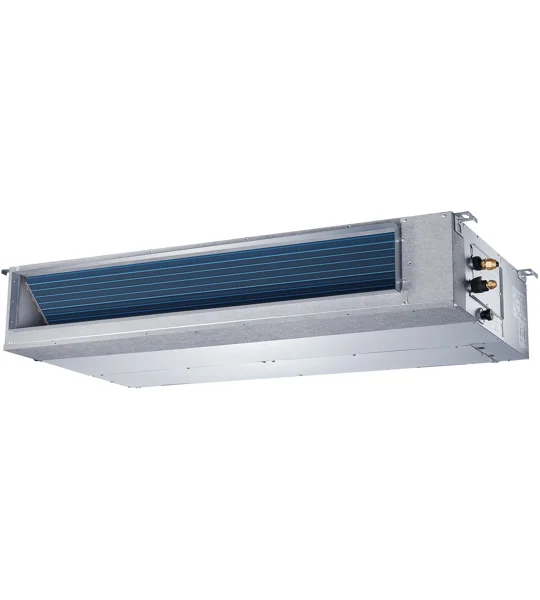

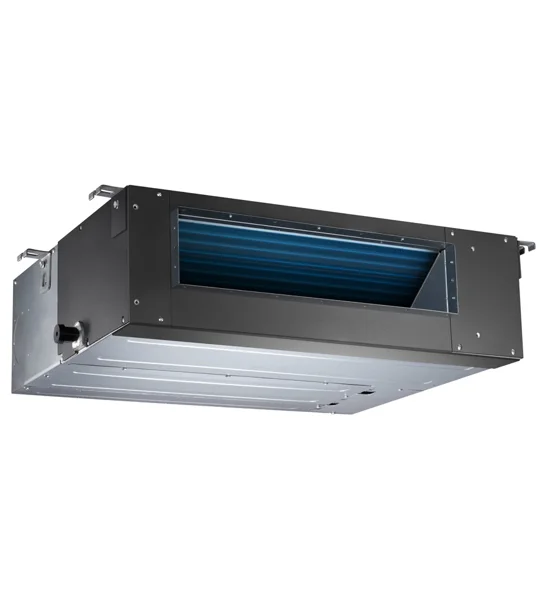

Slim Ducted (Hidden/Concealed): Slim Ducts provide an inconspicuous solution, hidden in attics and ceiling crawl spaces, without the energy loss associated with central ducted systems. Slim Ducts offer flexibility of installation as the ducts can be directed into separate areas which are collectively controlled by one wall thermostat. For example, one slim duct can be directed to cool and heat hallways, closets, laundry rooms, and bathrooms of a home while the bedrooms themselves are controlled independently. Slim Ducts are available in 9K, 12K, 18K and 24K Btu/h models. Condensate pump built in.

SPECIFICATIONS (CLICK)

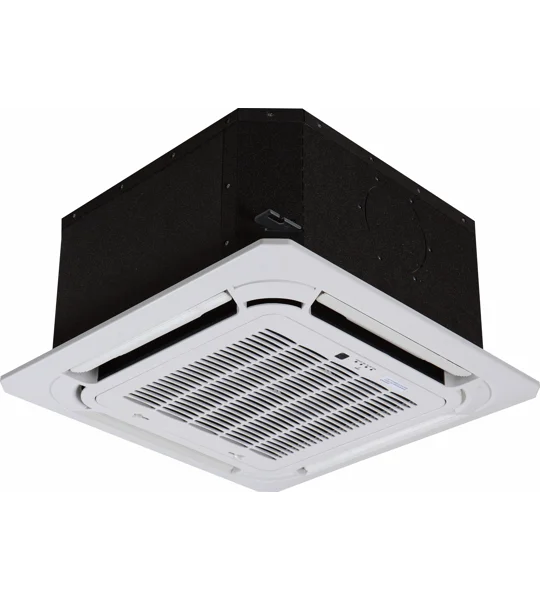

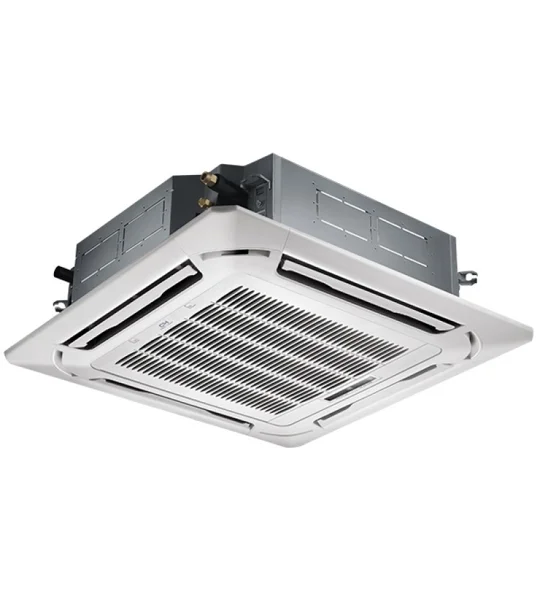

Ceiling Cassette: Ceiling Cassettes offer a convenient solution for offices and businesses, as they can easily fit into a standard ceiling grid (9-18k=22.5x22.5/24K+=33.07x33.07), but they can be used for almost any application, as long as enough space exists above the ceiling itself. Ceiling Cassettes provide omni-directional air flow and user-friendly Remote Control operation along with a built in condensate pump.

SPECIFICATIONS (CLICK)

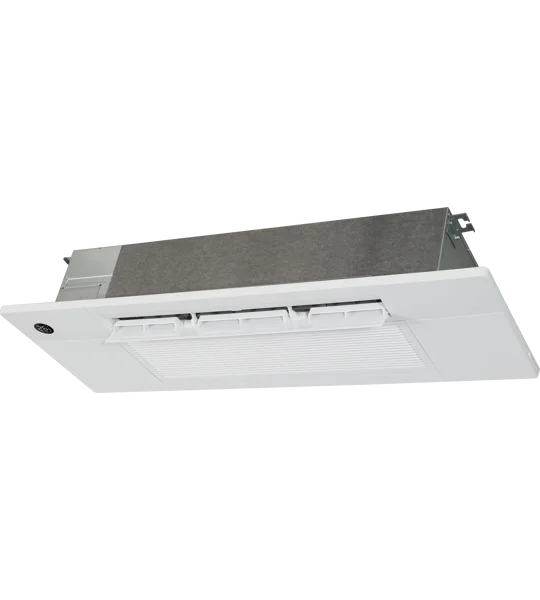

NEW SLIM Ceiling Cassette: SLIM Ceiling Cassettes offer a convenient solution for homes, offices and businesses, as they can easily fit into a ceiling joist (50.31x13.19x8.98) unlike traditional cassettes, but they can be used for almost any application, as long as enough space exists. Slim Ceiling Cassettes provide ONE WAY air flow and user-friendly Remote Control operation along with a built in condensate pump.

SPECIFICATIONS (CLICK)

INTELLIGENT AIR FLOW: Allows the technician to automatically and accurately calculate the required static pressure. ANTI-COLD AIR FUNCTION: Fan doesn’t blow until the coil is warm, so cold air is not pushed into the room upon startup. FAST COOL/HEAT FUNCTION: When set temperature is more than 10 degrees difference from room temperature, the unit will run at 100% capacity to reach it faster. ALUMINUM COIL: Fewer corrosion points than copper coils. AUXILIARY HEATER: Can be purchased separately as a back up heat option for indoor units. Available in 5kW, 10kW, 15kW, and 20 kW models. AUTO RESTART FUNCTION: Auto restart in the event of a power outage. REFRIGERANT LEAK DETECT: Protects the compressor from damage by high temperature due to refrigerantleak, by alerting user with error code “EC”. WIRED CONTROLLER: Compatible with most 24V thermostats WIFI READY: C&H WIFI Kit enables control with C&H remote App via OS or Android smart device (optional) TRUE MULTI POSITION AIR HANDLER: Horizontal, vertical, or downward installation.

SPECIFICATIONS (CLICK)

 See Related Items Below For More Accessories ⇓

  • Extra Low Temperature Heating
    For when its cold outside, the heat output for this system is up to 69% of rated capacity down to -13° F, making this a primary heat source and eliminating the need for a backup heat source.
  • Stepless Frequency Adjustment
    Precise control of the system maintains stable and constant room temperature while reducing sound level and saving energy.


FEATURES

  • Available in 208/230V
  • Built-in basepan & crankcase heater
  • Auto-restart function
  • Condenser high-temperature protection
  • Refrigerant leakage detection
  • Quiet outdoor operation
  • Aluminum Golden Hydrophilic pre-coated fins
  • Cooling operating range
    • -13~122
  • Heating operating range
    • -13° ~ 75° F


BROCHURE
PRODUCT SHEET
Quick Start Sheet







$1,369.99 inc. tax
$1,369.99 ex. tax
