C&H 12000 Btu Mini Split AC & Heat Pump Rated @ -13°F, Efficient 23 SEER2, 13 EER, 10.8 HSPF, E-Star

Model: A7: CH-ES12-230VO
Rating:
(1)
Brand: Cooper and Hunter
Product Condition: New
Units in Stock: 9
Wholesale Pricing
  • single - $1,229.99 ex. tax -
  • 2 up to 4 - $1,204.99 ex. tax - per item
  • 5 up to 10 - $1,179.99 ex. tax - per item
$1,229.99 inc. tax
$1,229.99 ex. tax
? Tax based on United States.
New C&H OLIVIA 12000 Btu Mini Split HYPER Heat Pump AC

This Cooper and Hunter 12000 Btu Mini Split Package Includes

*(1) Indoor Unit : with Remote
*(1) Hyper 12000 Btu Outdoor Unit
*Both can be upgraded, see the dropdown boxes

Indoor Features :
˜ECO Mode˜
˜Follow Me˜ ˜9 Modes˜
˜Fully Modulating Fan Speeds˜ Louver Control˜
˜Carbon Filter ˜Gold Coated Coils˜

12000 btu Outdoor Features :
˜Heats & Cools (-13F/-13F) ˜Basepan Heater (Built in)˜
˜Gold Coated Coils˜ ˜Refrigerant Leak Detection
˜Auto Restart˜

Brochure
-13F SPECIFICATIONS (CLICK)
HIGH-FREQUENCY RACER TECHNOLOGY:
Enables the compressor  to reach maximum speed within 6 seconds on start up
HIGH-EFFICIENCY PIPES:
54 teeth to increase heat exchange
INTELLIGENT DUSTING SWITCH:
Reverses the fan to clean dust and other debris from the coil

Olivia wall mounted systems can be controlled with the C&H remote control or via smart device, when used in conjunction with the brand’s optional WiFi kit and C&H Remote app. Other notable features include Follow Me Mode, Sleep Mode, Timer options, and 46° Freeze Protection. Genius Core Technology, for example, enables the unit to operate with an ultra-low compressor speed of 12Hz, for extra energy savings. Additionally, the new “I-Clean” function introduces a convenient solution for protecting the evaporator from mold buildup, which in turn increases the longevity of the unit while improving the quality of the air.


7yr Compressor 5yr Parts Warranty
*Upgrade the indoor unit to one below via the dropdown box above







• Auto-Swing for horizontal louvers • Genius Core ultra-low compressor speed of 12Hz • New User-Friendly Remote Controller design  • 46° Freeze Protection  • WiFi Ready  • Turbo Mode  • Self-Clean Function (single zone only) • Eco Mode (single zone only)  • Follow Me Mode  • Timer On/Off  • Sleep Mode

BROCHURE (CLICK)                BROCHURE (Midnight) (CLICK)



• E-Box and PCB located in the front of the unit with a cover kickstand providing easy access • Revolutionary design offers convenient disassembly & maintenance with an easy-to-remove fan blower • Larger air inlet / outlet for improved air flow • Auto-Swing for vertical and horizontal louvers • New User-Friendly Remote Controller design • Self-Clean Function (single zone only) • Follow Me Mode • Timer On/Off • Eco Mode (single zone only) • 46° Freeze Protection • Turbo Mode • Sleep Mode

BROCHURE (CLICK)

NEW Floor Console: Mini Floor Consoles are most popular in colder climates as, during winter seasons, dual air discharge locations provide heated air at ground level, which naturally rises to fill the room. They are also a great option for attics, which often do not have the wall or ceiling space for other indoor types. Mini Floor Consoles are available in 12K/16K Btu only.

SPECIFICATIONS (CLICK)


Floor or Ceiling Mount (Universal) : Universal Floor/Ceiling units offer flexibility in regard to location, as they can be installed horizontally on a ceiling or vertically on a wall. These units can be conveniently controlled by remote control, wall thermostat, or C&H Remote app. Universal Floor/Ceiling units are available in 18K and 24K models.

SPECIFICATIONS (CLICK)

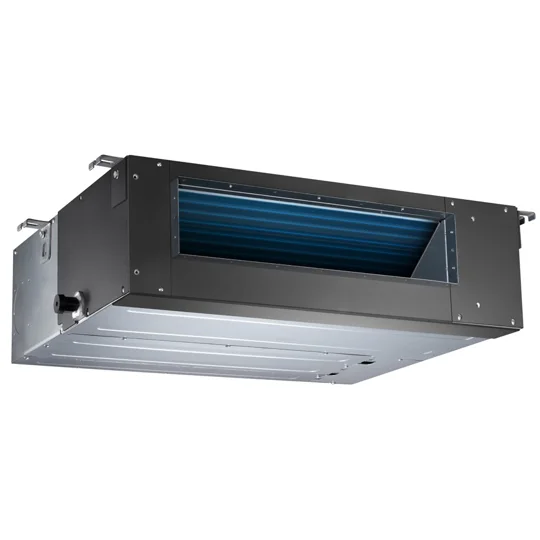

Slim Ducted (Hidden/Concealed): Slim Ducts provide an inconspicuous solution, hidden in attics and ceiling crawl spaces, without the energy loss associated with central ducted systems. Slim Ducts offer flexibility of installation as the ducts can be directed into separate areas which are collectively controlled by one wall thermostat. For example, one slim duct can be directed to cool and heat hallways, closets, laundry rooms, and bathrooms of a home while the bedrooms themselves are controlled independently. Slim Ducts are available in 9K, 12K, 18K and 24K Btu/h models. Condensate pump built in.

SPECIFICATIONS (CLICK)

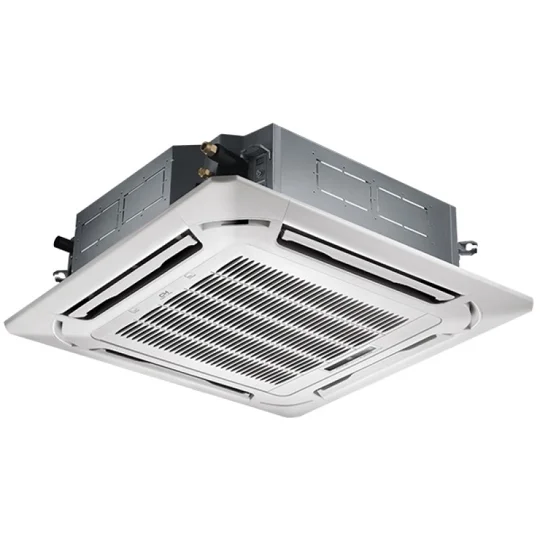

Ceiling Cassette: Ceiling Cassettes offer a convenient solution for offices and businesses, as they can easily fit into a standard ceiling grid (9-18k=22.5x22.5/24K+=33.07x33.07), but they can be used for almost any application, as long as enough space exists above the ceiling itself. Ceiling Cassettes provide omni-directional air flow and user-friendly Remote Control operation along with a built in condensate pump.

SPECIFICATIONS (CLICK)


NEW SLIM Ceiling Cassette: SLIM Ceiling Cassettes offer a convenient solution for homes, offices and businesses, as they can easily fit into a ceiling joist (50.31x13.19x8.98) unlike traditional cassettes, but they can be used for almost any application, as long as enough space exists. Slim Ceiling Cassettes provide ONE WAY air flow and user-friendly Remote Control operation along with a built in condensate pump.

SPECIFICATIONS (CLICK)  AHRI
 See Related Items Below For More Accessories ⇓

  • Extra Low Temperature Heating
    For when its cold outside, the heat output for this system is up to 69% of rated capacity down to -13° F , making this a primary heat source and eliminating the need for a backup heat source.
  • Stepless Frequency Adjustment
    Precise control of the system maintains stable and constant room temperature while reducing sound level and saving energy.


FEATURES

  • Available in 208/230V
  • Built-in basepan & crankcase heater
  • Auto-restart function
  • Condenser high-temperature protection
  • Refrigerant leakage detection
  • Quiet outdoor operation
  • Aluminum Golden Hydrophilic pre-coated fins
  • Cooling operating range
    • -13~122
  • Heating operating range
    • -13° ~ 75° F

SUBMITTAL DATA SHEET
PRODUCT SHEET
Quick Start Sheet
