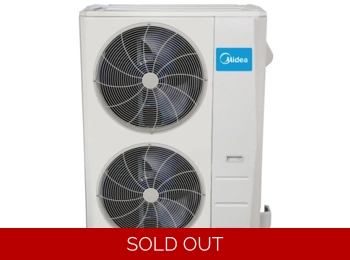

36000 btu 4 Zone 21.8 SEER DLCMHB Outdoor Unit

MULTI-ZONE OUTDOOR STANDARD FEATURES:
• Connect 2 to 4, multiple style indoor units
 High Wall ≤24K
 Cassette ≤24K
 Ducted ≤24K
 Console ≤24K
• Variable Speed (Inverter) Compressor
• Basepan Heater factory installed
• Quiet operation
• Aluminum Hydrophilic pre-coated fins
Cooling operating range -22°~122° F (-30°~50° C)
Heating operating range -22°~75° F (-30°~24° C)
• 96% Heating Capacity Maintenance at 5° F (-15° C)
• 50% Heating Capacity Maintenance at -22° F (-30° C)
LIMITED WARRANTY*
• 10 year limited to original purchaser on compressor and parts upon
timely registration, otherwise 5 years
*For residential applications. See warranty for full details.
DLCMHBH36DAK
Submittal Data
Copyright 2021 CMNA ● Atlanta, GA 30339
SUBJECT TO CHANGE WITHOUT NOTICE
Edition Date: 12/2021
Page 1
Catalog No: DLCMHB-36K-01SB
Replaces: NEW
Specifications
Cooling Rated Capacity Btu/h
Cooling Cap. Range Min - Max Btu/h
Heating Rated Capacity (47°F) Btu/h
Heating Rated Capacity (17°F) Btu/h
Heating Rated Capacity (5°F) Btu/h
Heating Maximum Capacity (5°F) Btu/h
Heating Cap. Range Min - Max Btu/h
COP (47°F) W/W
COP (17°F) W/W
COP (5°F) - Rated W/W
Cooling Rated Capacity Btu/h
Cooling Cap. Range Min - Max Btu/h
Heating Rated Capacity (47°F) Btu/h
Heating Rated Capacity (17°F) Btu/h
Heating Rated Capacity (5°F) Btu/h
Heating Maximum Capacity (5°F) Btu/h
Heating Cap. Range Min - Max Btu/h
COP (47°F) W/W
COP (17°F) W/W
COP (5°F) - Rated W/W
Cooling Rated Capacity Btu/h
Cooling Cap. Range Min - Max Btu/h
Heating Rated Capacity (47°F) Btu/h
Heating Rated Capacity (17°F) Btu/h
Heating Rated Capacity (5°F) Btu/h
Heating Maximum Capacity (5°F) Btu/h
Heating Cap. Range Min - Max Btu/h
COP (47°F) W/W
COP (17°F) W/W
COP (5°F) - Rated W/W
Rated Combinations
Two Zones
9+18 6+6+24 9+18+24 6+6+6+18 9+9+18+24
9+24 6+9+12 9+24+24 6+6+6+24 9+12+12+12
12+12 6+9+18 12+12+12 6+6+9+12 9+12+12+18
12+18 6+9+24 12+12+18 6+6+9+18 9+12+12+24
12+24 6+12+18 12+12+24 6+6+9+24 9+12+18+18
18+18 6+12+24 12+18+18 6+6+12+12 9+18+18+18
18+24 6+18+18 12+18+24 6+6+12+18 12+12+12+12
24+24 6+18+24 12+24+24 6+6+12+24 12+12+12+18
6+24+24 18+18+18 6+6+18+18 12+12+12+24
9+9+9 18+18+24 6+6+18+24 12+12+18+18
9+9+12 6+9+9+9
9+9+18 6+9+9+12
9+9+24 6+9+9+18
9+12+12 6+9+9+24
9+12+18 6+9+12+12
9+12+24 6+9+12+18
9+18+18 6+9+12+24
9+9+9+9
9+9+9+12
9+9+9+18
Three Zones
6+9+18+18
6+9+18+24
6+9+24+24
6+12+12+12
9+9+9+24
9+9+12+12
9+9+12+18
9+9+12+24
9+9+18+18
Four Zones
6+12+12+18
6+12+12+24
6+12+18+18
6+12+18+24
6+18+18+18
Performance
Ducted
Energy Star NO
Cooling System Tons 3
36,000
17,400~44,000
SEER 19.0
EER
HSPF 11
3.74
2.52
1.70
11.3
37,000
23,000
28,000
36,000
13,300~47,000
Performance
Combination
Ducted and
Non-Ducted
Energy Star YES
Cooling System Tons 3
36,000
17,500~43,000
SEER 20.4
EER
HSPF 11
3.80
2.65
1.70
12.5
36,750
23,100
28,700
36,000
12,900~48,000
Performance
Non-Ducted
Energy Star YES
Cooling System Tons 3
36,000
17,900~42,000
SEER 21.8
EER
HSPF 11
3.85
2.78
1.80
13.6
36,500
23,200
29,500
36,000
12,500~49,000
System
Size 36HH
Outdoor Model DLCMHBH36DAK
Max Number of Zones 4
